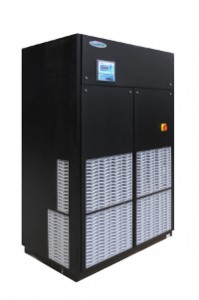

Series ED.X – Power
Cooling capacity from 7 to 138 kW – 1 and 2 circuits



DIRECT EXPANSION CLOSE CONTROL UNITS
WITH REMOTE CONDENSERS
REFRIGERANT R410A



The range of close control units with remote condenser, series ED.X, is particularly indicated for use in technological centres, data processing rooms, in telecom centres and in such applications where it is important to keep the thermo hygrometric conditions constant all over the year, so to assure the correct operation of the equipments installed in these sites. Depending on the cooling capacity, they are available with 1 and 2 cooling circuits.Thanks to their technologically advanced design, these close control units are able to control the ambient temperature with remarkably high precision and, when the humidity level is required, to adapt their cooling capacity to the room requirements, all automatically managed by the microprocessor on board. The high technology employed during their design together with the use of the best components available on the markets, make these units extremely reliable and therefore able to work for long periods, without a break.These units are particularly easy to install also in small spaces and easily accessible on the front side for ordinary and extraordinary service operations. They are completely assembled and tested in the factory and supplied under dry air pressure and with oil charge.For the remote condensers to be matched to these units, on request, it is possible to provide a voltage actuated pressure fan speed controller (option RG), installed inside the indoor unit, for condensing pressure control which provides speed variation with a reduced full load current and allows the operation of the condenser down to -20°C. For lower temperatures down to -40°C, it is necessary to select option BW on remote condensers. The units are available in different configurations, related to the air return and discharge:
·  U front air return, upflow air discharge;
·  V bottom air return, upflow air discharge;
·  B back air return, upflow air discharge;
·  D top air return, downflow air discharge.
Operation limits: ambient temperature from 18 to 35°C.

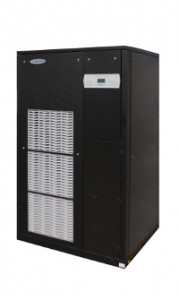

Series ED.E – Power
Cooling capacity from 6,3 to 135 kW – 1 and 2 circuits



DIRECT EXPANSION CLOSE CONTROL UNITS
WITH REMOTE CONDENSING UNIT
REFRIGERANT R410A



The range of close control units with remote condensing units, series ED.E, is particularly indicated for use in technological centres, data processing rooms, in telecom centres and in such applications where it is important to keep the thermo-hygrometric conditions constant all over the year, so to assure the correct operation of the equipments installed in these sites.Depending on the cooling capacity, they are available with 1 and 2 cooling circuits. Thanks to their technologically advanced design, these close control units are able to control the ambient temperature with remarkably high precision and, when the humidity level is required, to adapt their cooling capacity to the room requirements, all automatically managed by the microprocessor on board. The high technology employed during their design together with the use of the best components available on the markets, make these units extremely reliable and therefore able to work for long periods, without a break. These units are particularly easy to install also in small spaces and easily accessible on the front side for ordinary and extraordinary service operations. They are completely assembled and tested in the factory and supplied under dry air pressure and with oil charge. The units are available in different configurations, related to the air return and discharge:
· U front air return, upflow air discharge;
· V bottom air return, upflow air discharge;
· B back air return, upflow air discharge;
· D top air return, downflow air discharge.
Operation limits: ambient temperature from 18 to 35°C.

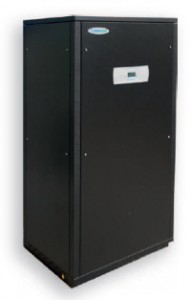

ED.X F
1-2 refrigerant circuits – cooling capacities from 21 to 93 kW



CLOSE CONTROL UNITS
DIRECT EXPANSION CLOSE CONTROL UNITS WITH FREE-COOLING COIL AND REMOTE CONDENSERS



The range of direct expansion close control with remote condenser and free cooling coil, ED.X F series, provided with a water-refrigerant interlaced row coil and allowing, besides direct expansion, the production of cool air by using external temperature (for example matching to a dry cooler), it is particularly suitable for use in data centres, technological rooms, in telecom centres and all areas where it is necessary to maintain constant hygrometric conditions all year long, as to guarantee correct functioning of installed equipments. Thanks to this technology, based on energy saving, it is possible to remarkably save on the operating costs, by sensibly reducing amortisation time of the plant. Depending on the cooling capacity, they are available with one or two cooling circuits. Thanks to their technologically advanced design, these close control units are able to control the ambient temperature with remarkably high precision and, when the humidity level is required, to adapt their cooling capacity to the room requirements, all automatically managed by the microprocessor on board. The high technology employed during their design together with the use of the best components available on the markets, make these units extremely reliable and therefore able to work for long periods, without a break. These units are particularly easy to install also in small spaces and easily accessible on the front side for ordinary and extraordinary service operations. They are completely assembled and tested in the factory and supplied under dry air pressure and with oil charge. For the remote condensers to be matched to these units, on request, it is possible to provide a voltage actuated pressure fan speed controller (option RG), installed inside the indoor unit, for condensing pressure control which
provides speed variation with a reduced full load current and allows the operation of the condenser down to -20°C. For lower temperatures down to -40°C, it is necessary to select option BW on remote condensers. The units are available in different configurations, related to the air return and discharge:
· U front air return, upflow air discharge;
· V bottom air return, upflow air discharge;
· B back air return, upflow air discharge;
· D top air return, downflow air discharge.
Operation limits: ambient temperature from 19 to 35°C





Series ED.H – Power
Cooling capacity from 7 to 151 kW – 1 and 2 circuits



DIRECT EXPANSION CLOSE CONTROL UNITS
WITH WATER COOLED CONDENSER
REFRIGERANT R410A



The range of close control units with water cooled condenser, series ED.H, is particularly indicated for use in technological centres, data processing rooms,in telecom centres and in such applications where it is important to keep the
thermo-hygrometric conditions constant all over the year, so to assure the correct operation of the equipments installed in these sites.Depending on the cooling capacity, they are available with 1 and 2 cooling circuits.Thanks to their technologically advanced design, these close control units are able to control the ambient temperature with remarkably high precision and, when the humidity level is required, to adapt their cooling capacity to the room requirements, all automatically managed by the microprocessor on board.The high technology employed during their design together with the use of the best components available on the markets, make these units extremely reliable and therefore able to work for long periods, without a break. These units are particularly easy to install also in small spaces and easily accessible on the front side for ordinary and extraordinary service operations. They are completely assembled and tested in the factory and supplied with refrigerant and oil charge. The units are available in different configurations, related to the air return and discharge:
· U front air return, upflow air discharge;
· V bottom air return, upflow air discharge;
· B back air return, upflow air discharge;
· D top air return, downflow air discharge.
Operation limits: ambient temperature from 19 to 35°C – water at condenser
inlet min. 20°C – outlet max 50 °C – (for water at inlet < 20°C it is necessary to
install option VP)





ED.H F
1-2 refrigerant circuits – Cooling capacities from 22 to 103 kW



CLOSE CONTROL UNITS
CLOSE CONTROL UNITS WITH WATER COOLED CONDENSER AND FREE-COOLING COIL



The range of direct expansion close control with water cooled condenser and free cooling coil, ED.H F series, provided with a water-refrigerant interlaced row coil and allowing, besides direct expansion, the production of cool air by using external temperature (for example matching to a dry cooler), it is particularly suitable for use in data centres, technological rooms, in telecom centres and all areas where it is necessary to maintain constant hygrometric conditions all-year long, as to guarantee correct functioning of installed equipments. Thanks to this technology, based on energy saving, it is possible to remarkably save on the operating costs, by sensibly reducing amortisation time of the plant.Depending on the cooling  capacity, they are available with one or two cooling circuits.Thanks to their technologically advanced design, these close control units are able to control the ambient temperature with remarkably high precision and, when the humidity level is required, to adapt their cooling capacity to the room requirements, all automatically managed by the microprocessor on
board.The high technology employed during their design together with the use of the best components available on the markets, make these units extremely reliable and therefore able to work for long periods, without a break. These units are particularly easy to install, also in small spaces and easily accessible on the front side for ordinary and extraordinary service operations. They are completely assembled and tested in the factory and supplied with refrigerant and oil charge. The units are available in di! erent configurations, related to the air return and discharge:
· U front air return, upflow air discharge,
· V bottom air return, upflow air discharge,
· B back air return, upflow air discharge,
· D top air return, downflow air discharge.



Operation limits: ambient temperature from 19 to 35°C – water at condenser
inlet min. 20°C – outlet max 50 °C – (for water at inlet < 20°C it is necessary to
install option VP).





Serie UW – Power

Cooling capacity from 5 to 154 kW



CLOSE CONTROL UNITS
WITH CHILLED WATER COIL



The range of chilled water close control units, series UW, is particularly indicated for use in technological centres, data processing rooms, in telecom centres and in such applications where it is important to keep the thermohygrometric conditions constant all over the year, so to assure the correct operation of the equipments installed in these sites.Thanks to their technologically advanced design, these close control units are able to control the ambient temperature with remarkably high precision and, when the humidity level is required, to adapt their cooling capacity to the room requirements, all automatically managed by the microprocessor on board. The high technology employed during their design together with the use of the best components available on the markets, make these units extremely reliable and therefore able to work for long periods, without a break. These units are particularly easy to install also in small spaces and easily maccessible on the front side for ordinary and extraordinary service operations. They are completely assembled and tested in the factory. The units are available in different configurations, related to the air return and discharge:



· UW U front air return, upflow air discharge;
· UW V bottom air return, upflow air discharge;
· UW D top air return, downflow air discharge.
The standard range has been improved with the SLIM configuration (mod.
UWL D), available in two working modes:
· HP – High performance: setting of the fans, maximizing the heat exchange through the hydrophilically treated coil, which increases the total and sensible cooling capacity and ensures, on the other hand, reduced electrical absorption values, if compared to the given cooling capacity, and a low sound pressure level.
· ES – Energy saving: setting of the fans, maximizing their energy saving, which ensures heat exchange ratio giving a particularly high total and sensible capacity, together with a reduction of the energy consumption and of the overall sound level. In both cases, the increase of the fan speed rotation to get higher pressure values involves, as a consequence, an increase of the sound level of the unit, which needs to be considered in the acoustics evaluation of the installation site.
Operation limits: ambient temperature from 18 to 35°C.





Series ED.… .SF..K / Series UV…SF
1 and 2 refrigerant circuits – cooling capacities from 4 to 27 kW



CLOSE CONTROL UNITS FOR TELECOM CENTRES
DIRECT EXPANSION AND CHILLED WATER CLOSE CONTROL UNITS WITH FREE-COOLING SYSTEMS – PACKAGED AND SPLIT VERSION



The range of close control units with in-built free-cooling system of  packaged and direct expansion type (ED.P SF series) or with remote condenser (ED.A SF series) or of chilled water type (UV SF series) is particularly indicated for use in technological centres, data processing rooms, in telecom centres and in such applications where it is important to  keep the thermo-hygrometric conditions constant all over the year, so to assure the correct operation of the equipments installed in these sites.Depending on the cooling capacity, they are available with 1 and 2 cooling  circuits. Thanks to their technologically advanced design, these close control units are able to control the ambient temperature with remarkably high precision  and, when the humidity level is required, to adapt their cooling capacity to  the room requirements, all automatically managed by the microprocessor  on board. The high technology employed during their design together with the use of the best components available on the markets, make these units extremely reliable and therefore able to work for long periods, without a break.These units are particularly easy to install also in small spaces and  easily accessible on the front side for ordinary and extraordinary service operations.They are completely assembled and tested in the factory and supplied with nitrogen charge.
These units are available as follows:
Packaged version:
· ED.P SF.E.K displacement air diffusion,
· ED.P SF.U.K upflow,
· ED.P SF.D.K downflow.
Split version with remote condenser:
· ED.A SF.E.K displacement air diffusion,
· ED.A SF.U.K upflow,
· ED.A SF.D.K downflow.
Chilled water version:
· UV SF.E displacement air diffusion,
· UV SF.U upflow,
· UV SF.D downflow.
Operation limits: ambient temperature from 20°C to 37°C.
