RAE Kc / RAE PS.Kc Series
Cooling capacity from 5,5 to 18,2 kW – 1 refrigerant circuit



AIR COOLED CHILLERS
WITH SCROLL COMPRESSORS AND AXIAL FANS
REFRIGERANT R410A



The air cooled chillers of RAE Kc series are designed for outdoor installation and are particularly suitable for small and medium sized air conditioning systems, in residential and commercial applications. Therefore during their design, it has been given a particular care for dimensions and sound level, so to have compact and silent units at the same time. They can also be matched to fancoils or terminal units or for water cooling in small industrial processes.
They are all available with 1 refrigerant circuit.
Thanks to their compact dimensions and to the several options available, these units are particularly easy to install in small spaces.
They are completely assembled and tested in the factory and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, also with pump and hydraulic tank, the units only need to be positioned and electrically and hydraulically connected.



Operation limits (standard units):
AIR: from 15 to 45°C; WATER (out from evaporator): from 5 to 15°C.







RAE Kc Series
Cooling capacity from 19,5 to 82 kW – 1 and 2 refrigerant circuits



AIR COOLED CHILLERS
WITH SCROLL COMPRESSORS AND AXIAL FANS
REFRIGERANT R410A



The aircooled chillers of RAE Kc series are designed for outdoor installation and are particularly suitable for small and medium sized air conditioning systems, in residential and commercial applications.
Depending on the cooling capacity, they are available with 1 and 2 cooling circuits.
Thanks to their compact dimensions and to the several options available, these units are particularly easy to install in small spaces, also when supplied with the hydraulic kit.
All sizes are standard provided with an isolated compressors section and the external frame is completely closed.
They are completely assembled and tested in the factory and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, the units only need to be positioned and electrically and hydraulically connected.



Operation limits (standard units):
AIR: from 15 to 45°C;   WATER (out from evaporator): from 5 to 15°C.







RAE Kc Series
Cooling capacity from 78 to 618 kW – 2 refrigerant circuits



AIR COOLED CHILLERS
WITH SCROLL COMPRESSORS
REFRIGERANT R410A



The air cooled chillers of RAE Kc series, are suitable for outdoor installation and can be used to cool pure fluid solutions for air conditioning or in industrial applications.
Each group has two independent cooling circuits provided with R410A scroll compressors.
These units have been designed considering limited space requirements and keeping, at the same time, high cooling performances. Such result has been attained with high-quality and up-to-date components.
All units are completely assembled and tested in the factory with specific quality procedures and are already equipped with all necessary hydraulic, refrigerant and electrical connections for a quick installation on site.
Before factory testing, cooling circuits are tested under pressure and then supplied with R410A refrigerant and a non-freezing oil charge.



Operation limits (standard units):
AIR: from 10 to 42°C;   WATER (out from evaporator): from 5 to 15°C





RAE F Kc Series
Cooling capacity from 76 to 612 kW – 1 and 2 refrigerant circuits



AIR COOLED FREE-COOLING CHILLERS
WITH SCROLL COMPRESSORS AND AXIAL FANS
REFRIGERANT R410A



Packaged air cooled chillers of RAE F Kc series with integrated free cooling section are suitable for outdoor installation and can be used to cool glycol fluid solutions for air conditioning or in industrial applications.
The integrated free cooling section allows to partially or totally recovering cooling capacity from external air without big consumption of energy. Units are equipped with an additional coil crossed by the liquid to be chilled and invested by the complete air flow generated by the condenser fans.
These units have been designed considering limited space requirements and keeping, at the same time, high cooling performances. Such result has been attained with high-quality and up-to-date components.
All units are completely assembled and tested in the factory with specific quality procedures and are already equipped with all necessary hydraulic, refrigerant and electrical connections for a quick installation on site.
Before factory testing, cooling circuits are tested under pressure and then supplied with R410A refrigerant and a non-freezing oil charge.



Operation limits (standard units):
AIR: from 0 to 42°C; WATER (out from evaporator): from 5 to 15°C (from -5 to 15°C using glycol mixture).







RAE C Kc series
Cooling capacity from 11 to 18 kW – 1 refrigerant circuit



AIR COOLED CHILLERS
WITH SCROLL COMPRESSORS AND CENTRIFUGAL FANS
REFRIGERANT R410A



The air cooled chillers of RAE C Kc series, with centrifugal fans, are designed for indoor installation and are particularly suitable for small and medium sized air conditioning systems, in residential and commercial applications. Therefore during their design, it has been given a particular care for dimensions and sound level, so to have compact and silent units at the same time.
They can also be matched to fancoils or terminal units or for water cooling in small industrial processes.
They are all available with 1 refrigerant circuit.
Thanks to their compact dimensions and to the several options available, these units are particularly easy to install in small spaces.
They are completely assembled and tested in the factory and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, the units only need to be positioned and electrically and hydraulically connected.



Operation limits (standard units):
AIR: from 15 to 45°C;   WATER (out from evaporator): from 5 to 15°C.









RAE C Kc series
Cooling capacity from 20 to 89 kW – 1 and 2 refrigerant circuits



AIR COOLED CHILLERS
WITH SCROLL COMPRESSORS AND CENTRIFUGAL FANS
REFRIGERANT R410A



The air cooled chillers of RAE C Kc series, with centrifugal fans, are designed for indoor installation and are particularly suitable for small and medium sized air conditioning systems, in residential and commercial applications. They can also be matched to fancoils or terminal units or for water cooling in small industrial processes.
They are all available with 1 or 2 refrigerant circuits.
During their design, it has been given a particular care for dimensions and compactness, so to facilitate their handling and positioning in site. In order to further reduce weight and dimensions, in case of particular applications, when the units are provided with buffer tank and pump group, on request it is possible to separately supply the hydraulic kit, usually included in the frame of the unit itself.
They are completely assembled and tested in the factory and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, the units only need to be positioned and electrically and hydraulically connected.



Operation limits (standard units):

AIR: from 15 to 45°C;   WATER (out from evaporator): from 5 to 15°C







RAE C Kc Series
Cooling capacity from 84 to 250 kW – 2 refrigerant circuits



AIR COOLED CHILLERS
WITH SCROLL COMPRESSORS AND CENTRIFUGAL FANS
REFRIGERANT R410A



The air cooled chillers of RAE C Kc series, with centrifugal fans, are designed for indoor installation and are particularly suitable for small and medium sized air conditioning systems, in residential and commercial applications. They can also be matched to fancoils or terminal units or for water cooling in industrial processes.
They are all available with 2 refrigerant circuits.
Thanks to their compact dimensions and to the several options available, these units are particularly easy to install in small spaces.
The whole range is complete of a compressors section, allowing a quick and easy ordinary service to the units.
They are completely assembled and tested in the factory and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, the units only need to be positioned and electrically and hydraulically connected.



Operation limits (standard units):
AIR: from 15 to 45°C;   WATER (out from evaporator): from 5 to 15°C.

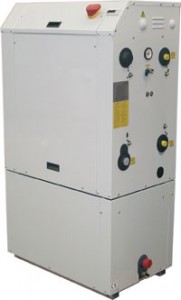

RWE Ka – Kc Series
Cooling capacity from 6 to 89 kW – 1 refrigerant circuit



WATER COOLED CHILLERS
WITH HOUSING AND SCROLL COMPRESSORS
REFRIGERANT R134A – R410A



The water cooled chillers of RWE Ka/ RWE Kc series are designed for indoor installation and are particularly suitable for small and medium sized air conditioning systems, in residential and commercial applications. For this reason, they are made of a housing in painted steel plate.
They are all available with 1 refrigerant circuit.
Thanks to their compact dimensions and to the several options available, these units are particularly easy to install in small spaces.
They are completely assembled and tested in the factory and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, the units only need to be positioned and electrically and hydraulically connected.



Operation limits (standard units):
EVAPORATOR (OUT): from 5 to 15°C
CONDENSER (OUT): from 30 to 55°C



RWE Kc Series
Cooling capacity from 50 to 475 kW – 1 and 2 refrigerant circuits



WATER COOLED CHILLERS
WITH SCROLL COMPRESSORS (SINGLE AND TANDEM)
REFRIGERANT R410A



The water cooled chillers of RWE Kc series are designed for indoor installation and are particularly suitable for small and medium sized air conditioning systems, with different applications like multiple dwellings and commercial application, whereas a water ring for heat dissipation is available.
They are all available with 1 or 2 refrigerant circuits.
The unit have been designed to be extremely compact, with anyway an easy access for both ordinary and extraordinary maintenance
Thanks to their compact dimensions and to the several available options, these units are particularly easy to install also in small spaces, with no building works.
They are completely factory assembled and tested and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, the units only need to be positioned and electrically and hydraulically connected.



Water operation limits (standard units):
EVAPORATOR (OUT): from 5 to 15°C
CONDENSER (OUT): from 30 to 55°C
