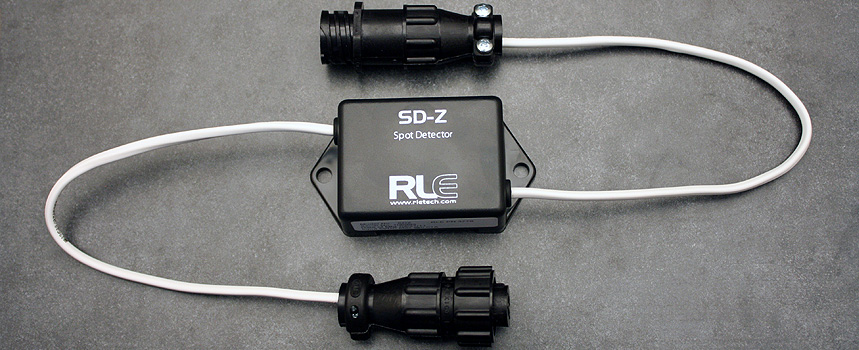

RLE SD-Z

Designed to work with all of RLE’s leak detection controllers, the SD-Z spot detector can be connected to other SD-Z units or to sensing or non-sensing cable.

The SD-Z can be used with either zone or distance-read leak detection controllers.  When used with a distance-read system, the SD-Z simulates 50 feet of cable – 25ft. (7.62m) from the male connector to the SD-Z, and 25ft. (7.62m) from the SD-Z to the female connector.

Spot detectors are ideal for small spaces, and are the most economical way to detect fluids in confined areas, such as condensation drip pans.

Technical Specifications

Key Features

• No exposed metal sensing posts – nothing to rust or corrode
• Potted electronics
• Functions when submerged in water
• Adjustable probes are easily adjusted to desired height
• Can be screwed or ram set to floor or baseboard
• Small footprint/enclosure
• Simple installation
• Ideal for tight areas

Power: N/A

Leader Cable (Non-sensing)

• Length: 10 inches (0.25m); male & female connector
• Connector: 1 male, 1 female; 4 pin, 0.96in (24.4mm) diameter; connects to SeaHawk sensing cable (SC) cable or non-sensing cable (NSC)

Operating Environment

• Temperature: 32° to 122°F (0° to 50°C)
• Humidity: 5% to 95% RH, non-condensing
• Altitude: 15,000ft (4,572m) max.

Storage Environment:  -4° to 158°F (-20° to 70°C)

Dimensions: 1.55″W x 2.0″H x 1.0″D (39.4mmW x 50.8mmH x 25.4mmD)

Weight: 3 oz. (93g)

Certifications: CE; ETL listed: conforms to UL 61010-1, EN 61010, CSA C22.2 No. 61010-1, IEC 61326:1997; RoHS compliant
